Toggle switch

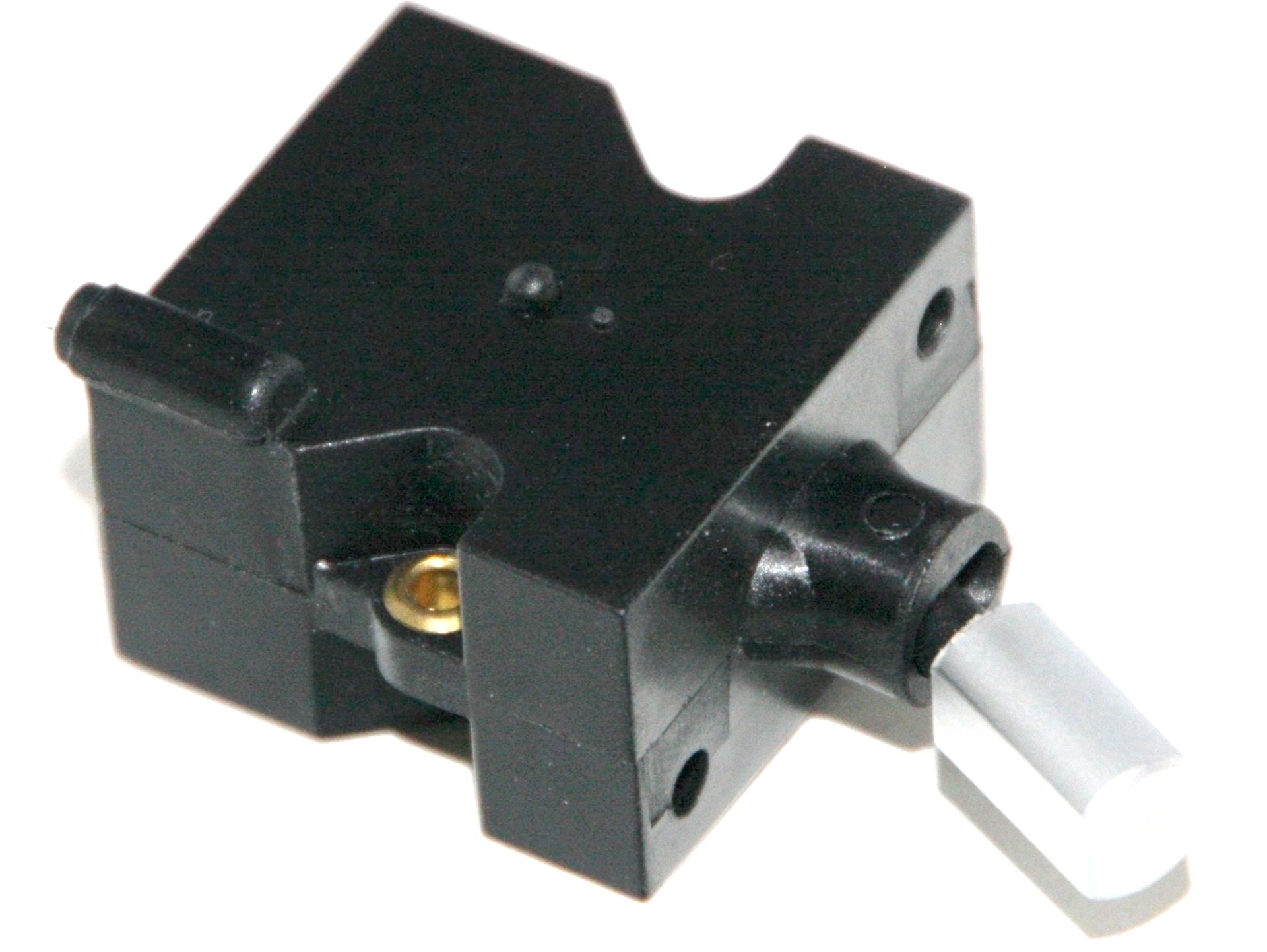

The toggle switches on the Revox B700 series are a vexing issue. Time and again, the plastic levers of the toggle switches break off. Either the plastic becomes brittle over the decades due to the loss of the plasticiser, or the levers break due to overuse!
Of course, our new toggle switch levers look great and match the Revox design perfectly. The feel and switching behaviour are also first class. If you had to replace a toggle switch, it would cost around €40.00 (2 * UM) or even €50.00 (4 * UM). In the meantime, there are no more new toggle switches!
We then looked for a company that could manufacture the levers to the required quality. Another company was responsible for the nickel plating and subsequent chrome plating.
We now have the toggle switch levers manufactured from a single piece of aluminium and anodised to match.
The repair
of the Revox toggle switches
Rivets
Drill out two hollow rivets of the toggle switches and carefully separate the upper part of the toggle switch from the lower part.
Caution! There is a spring in the switch that tends to pop out!

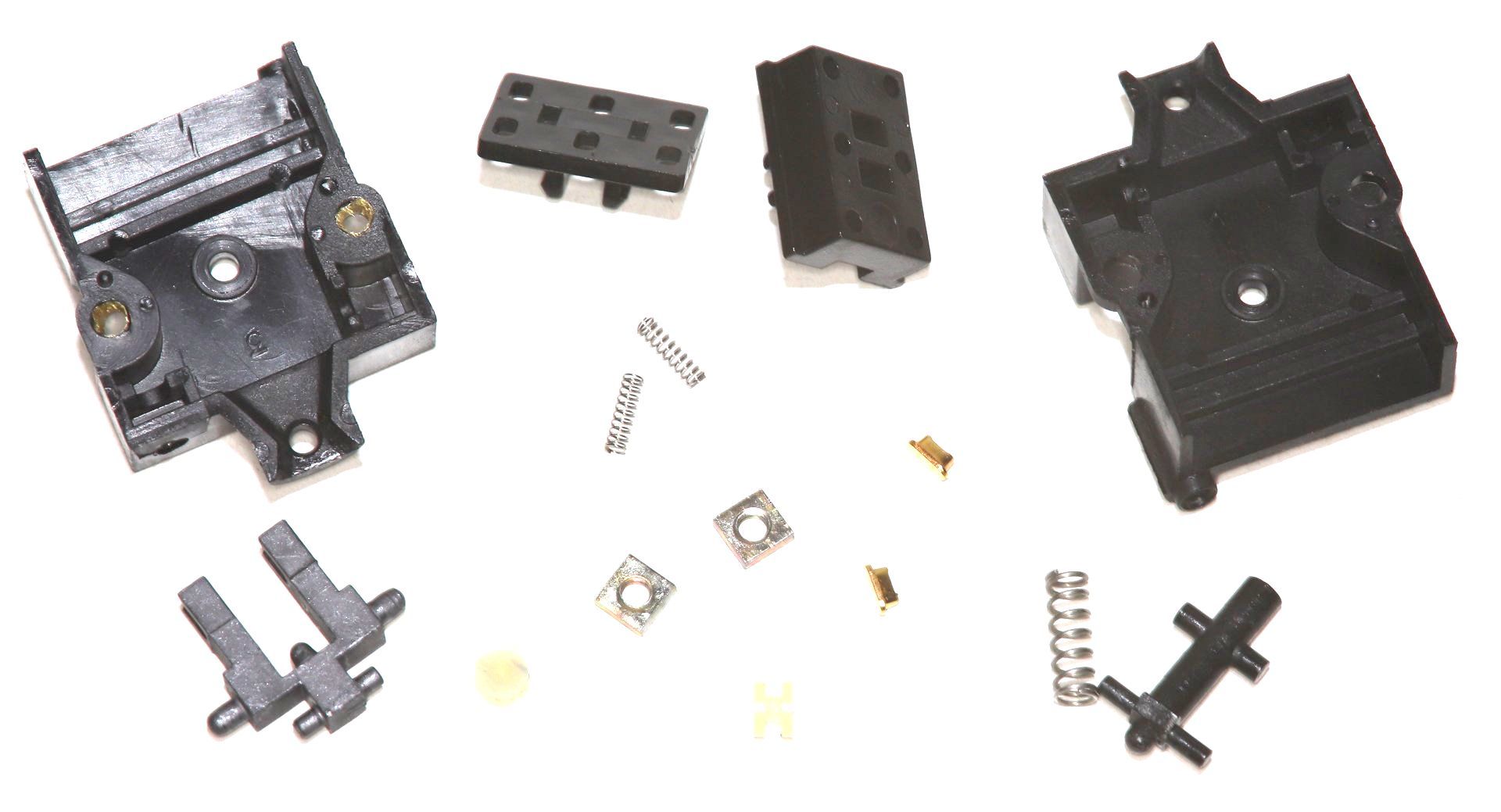

The individual parts

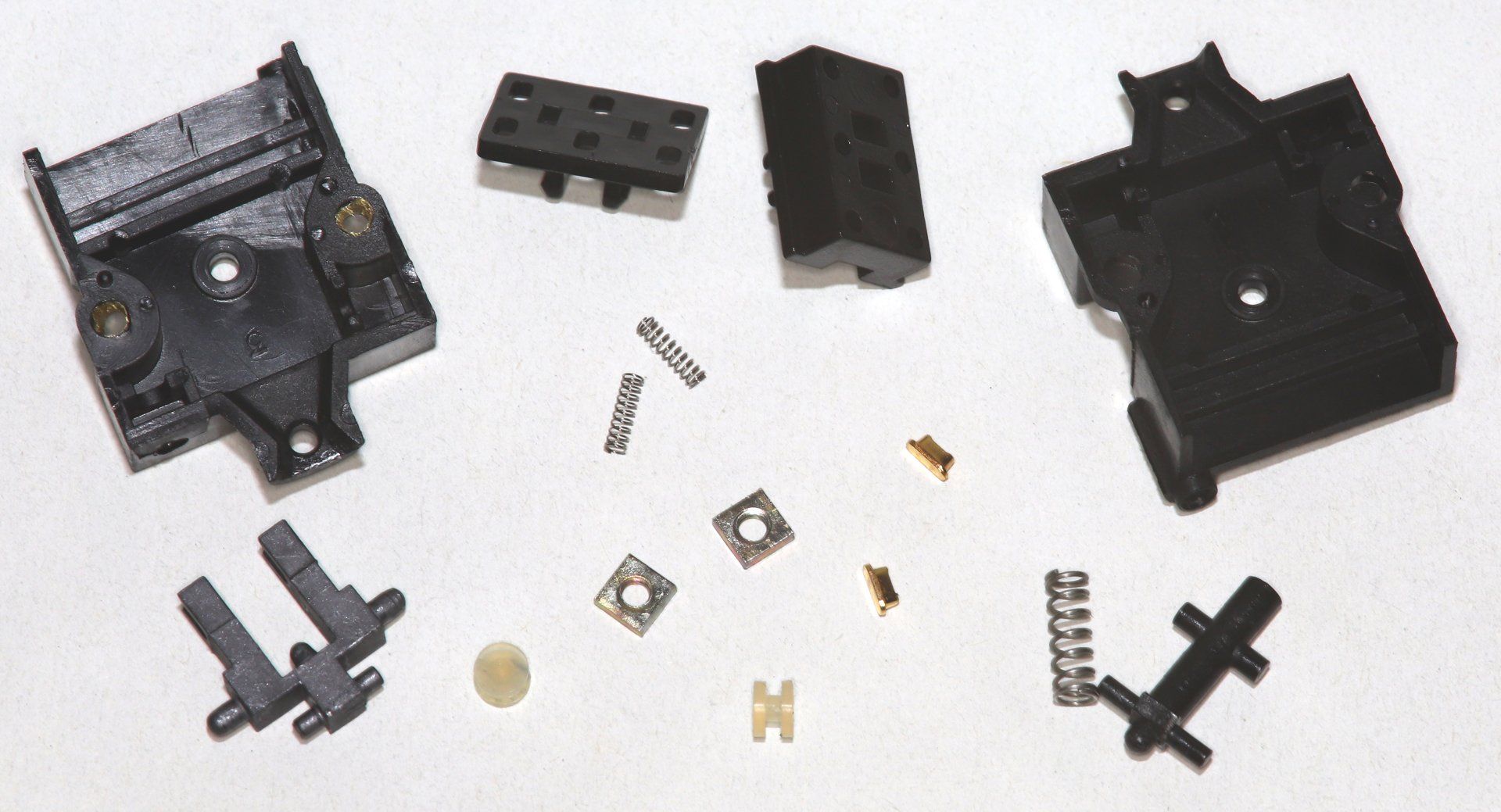

of the switch are the spring, the plastic lever, the slide with cover, the two or four contacts with the respective springs that press the contacts outwards against the cover, the deflection unit, two nuts, two rubber buffers and two housing shells.

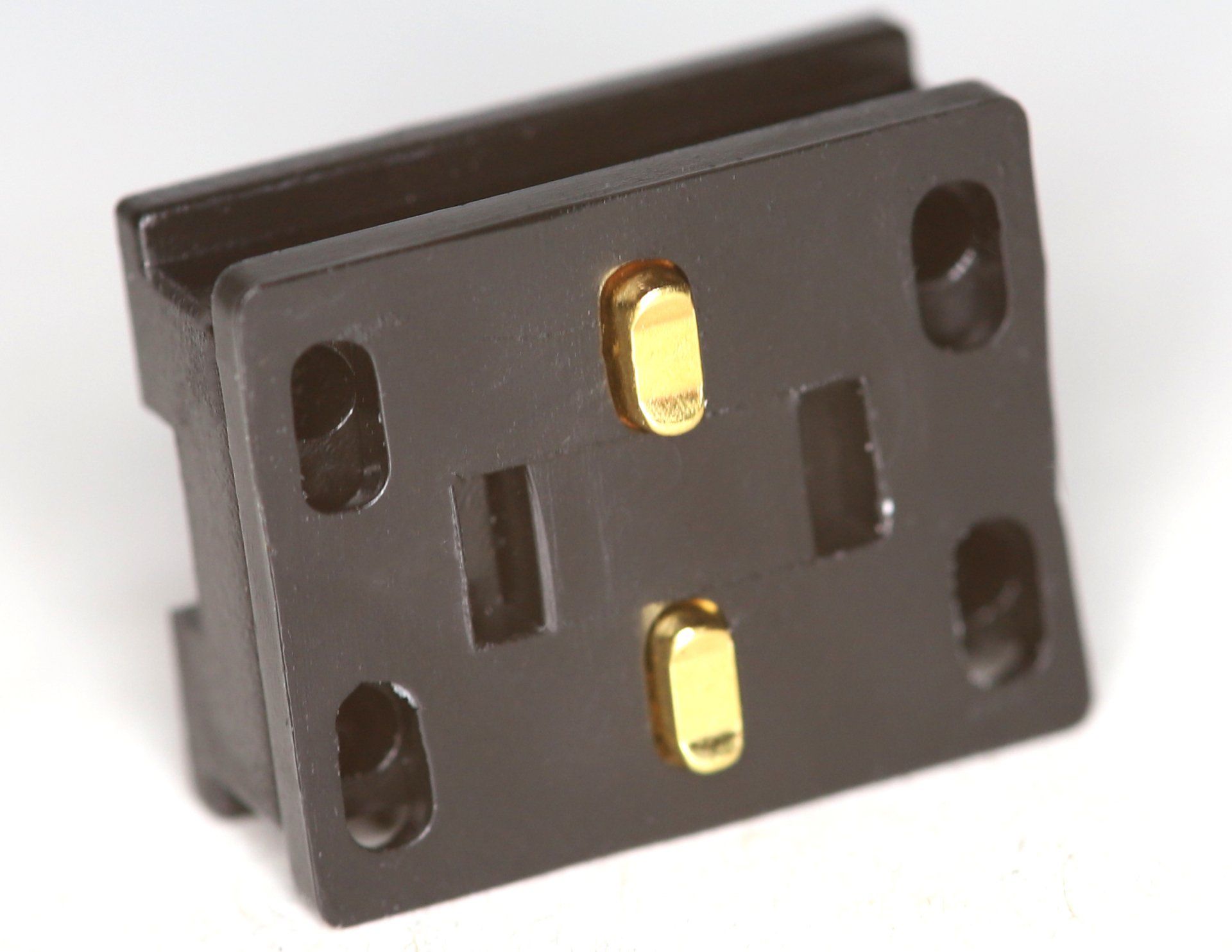

Contact slide
You do not need to dismantle the slide to repair the toggle switch. The contacts with the springs, slide and cover remain together as a unit.
Nut
To prevent the nut on the upper housing shell from falling off during assembly, it is temporarily fixed in place with one of the screws supplied.
Arrangement

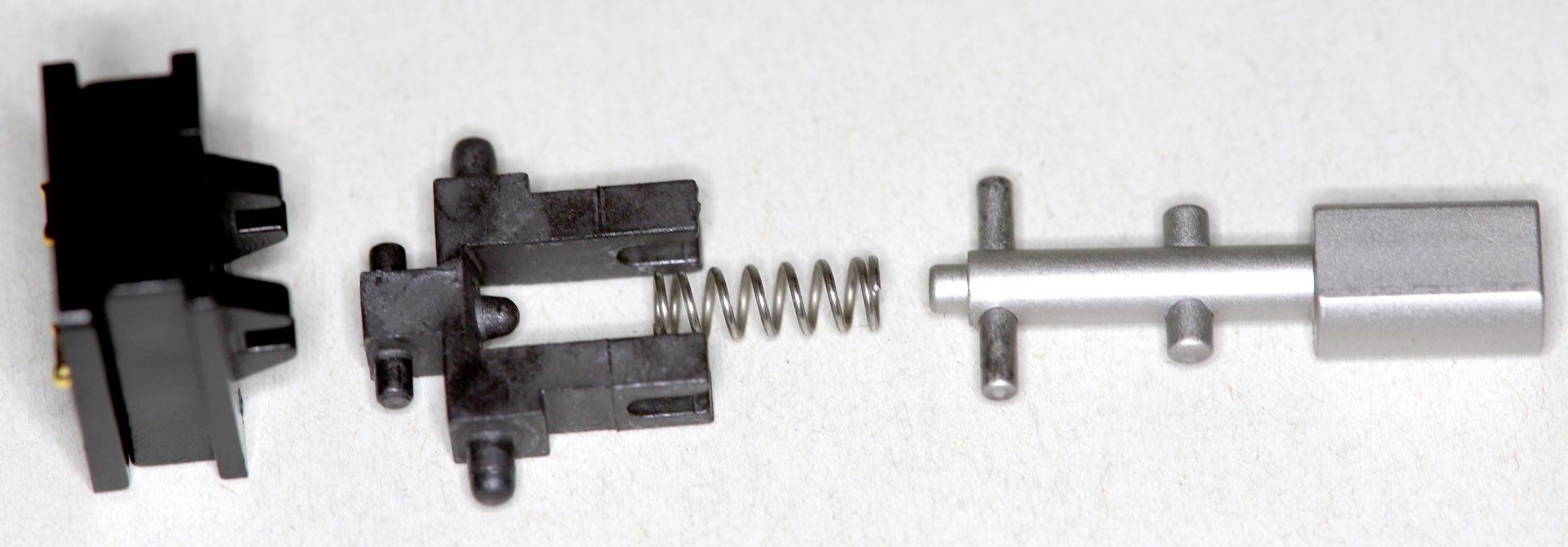

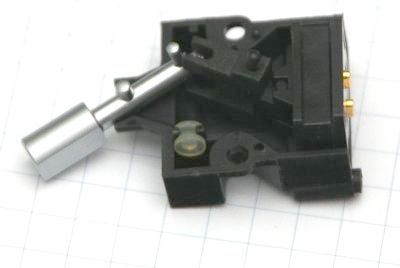

On the left is the slide with the two or four contacts, followed by the rocker, the spring and the new toggle switch lever
Assembly

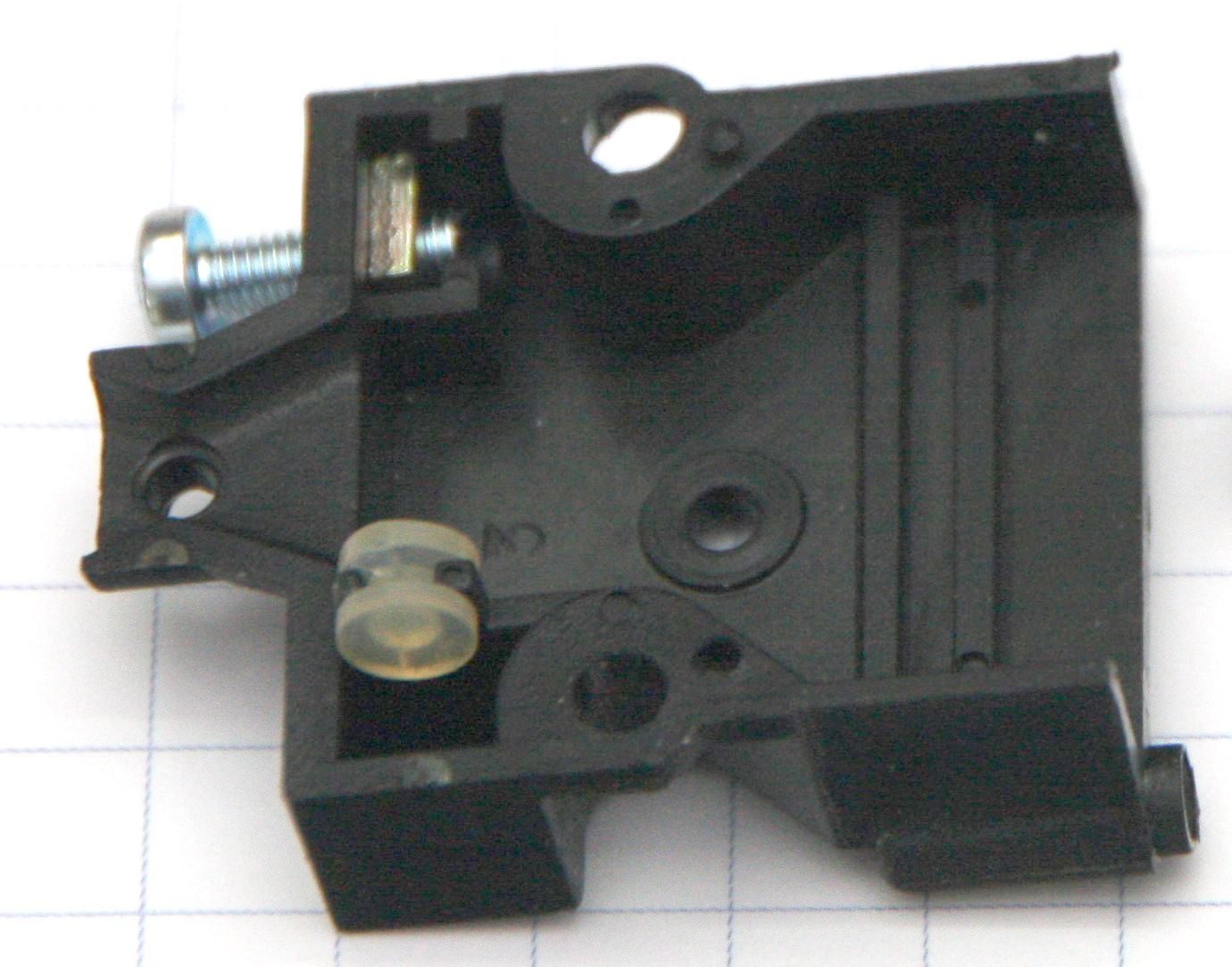

All of this has to go into the lower housing shell.
The spring ensures that the construction keeps falling apart! You have to be patient and somehow hold everything together. Then fit the upper housing shell and screw it together with the second screw.
Screwing together
Now loosen the first screw holding the inner nut and screw the other side of the Revox toggle switch housing together.

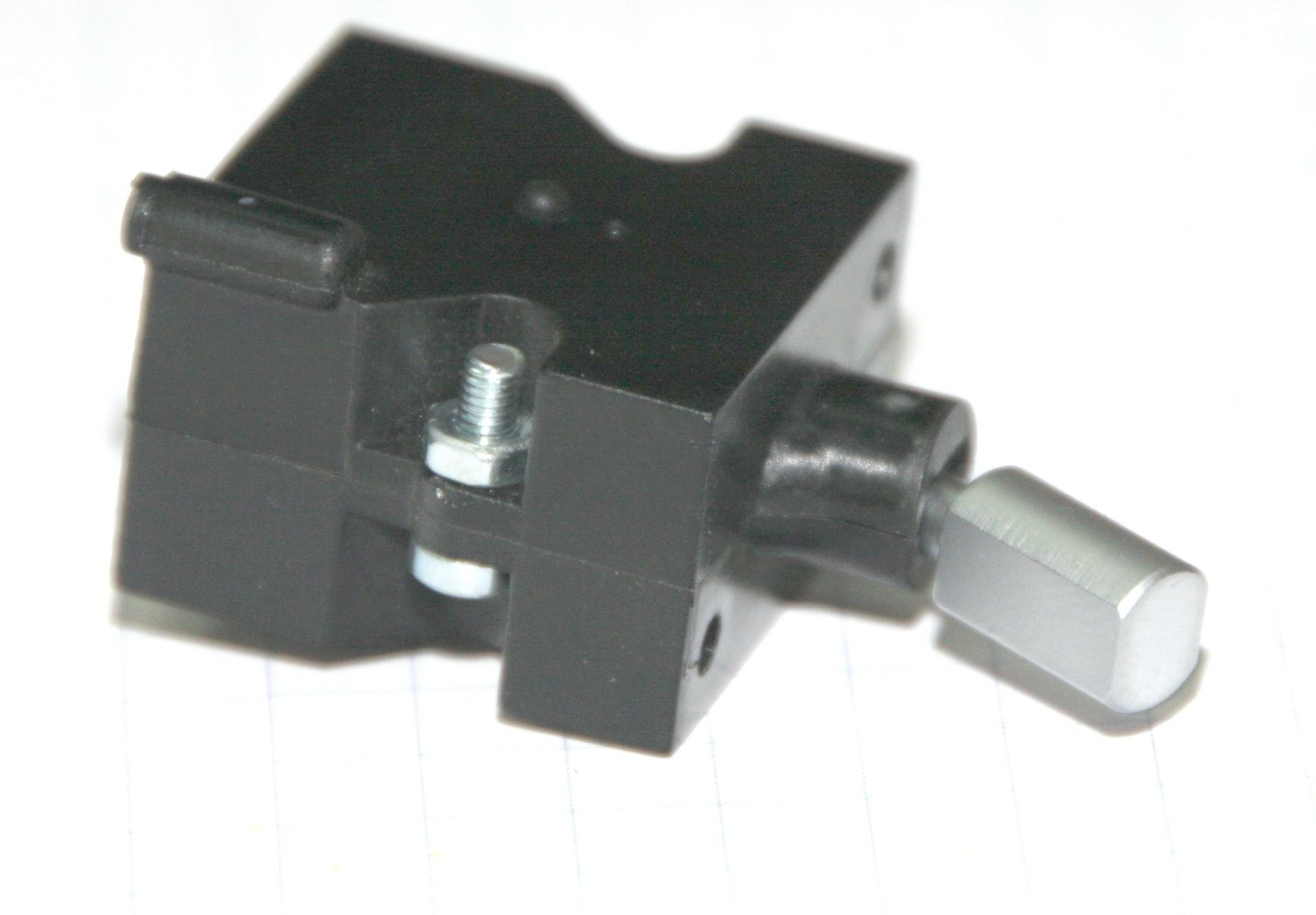

Done

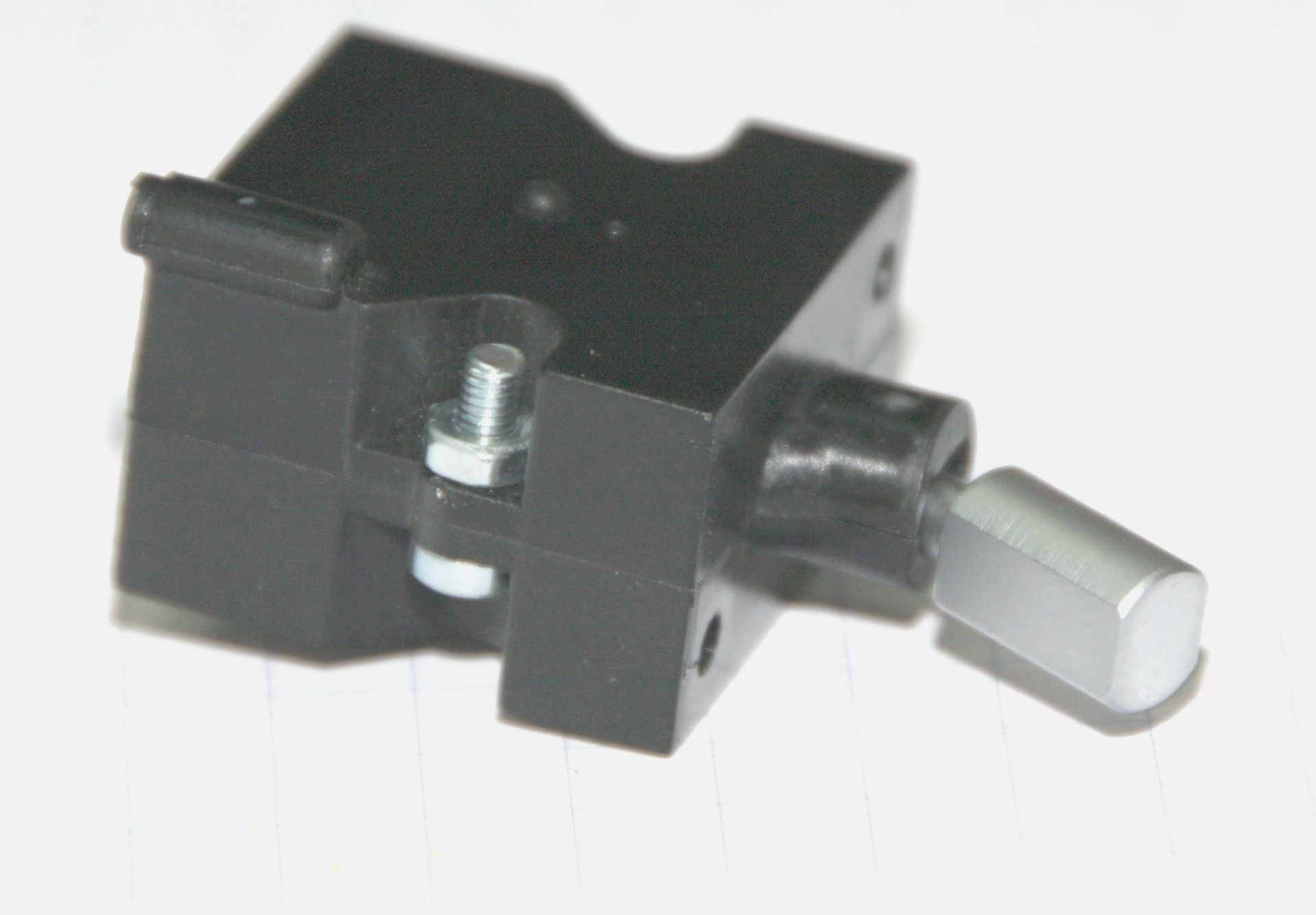

This is how it should look when you have assembled everything.
Instead of rivets, the housing shells are screwed together.
Toggle switch lever
in our shop
Here you will find the toggle switch levers for repairing the Revox toggle switches.
